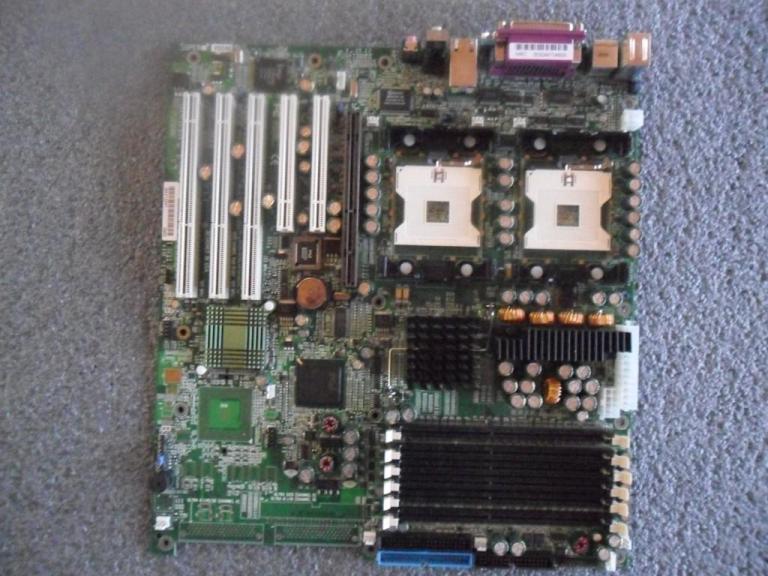

Supermicro X5DAE Dual Xeon E7575 chipset Motherboard (SOLD OUT)

Supermicro X5DAE Dual Xeon E7575 chipset Motherboard Description:
An Older generation Dual Xeon (Intel E7505 Chipset) Server motherboard.
Still in demand, Widgets maintains stock on components for this system
In stock and can ship for next day delivery.





Supermicro X5DAE Dual Xeon E7575 chipset Motherboard Specification: Form Factor : Extended ATX
Dimensions : 12" x 13.05" (30.5cm x 33.2cm)
Processor/Cache: CPU • Dual mPGA604 ZIF Sockets • Supports up to two Intel® Xeon® processor(s) with 1MB integrated Advanced Transfer Cache up to 3.20GHz System Bus 533MHz/400MHz system bus
System Memory / Memory Capacity : • Six 184-pin DIMM sockets • Supports up to 12 GB DDR266/200 memory • Dual channel memory bus • Memory must be populated in pairs
Memory Type : DDR266/200 registered ECC SDRAM 72-bit, 184-pin gold-plated DIMMs
DIMM Sizes : 256 MB, 512 MB, 1GB, 2GB
Memory Voltage : 2.5 V only
On-Board Devices: Chipset : • Intel® E7505 chipset • MCH + ICH4 + P64H2
Network Controllers : • 1x Intel® 82545EM Gigabit Ethernet • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio : AC'97 audio CODEC with high quality 6-channel sound
Input / Output:
AGP : 8x/4x AGP Pro 1.5V
PCI Expansion : • 1x 64-bit 133/100/66MHz PCI-X (3.3V) slot • 2x 64-bit 100/66MHz PCI-X (3.3V) slots • 2x 32-bit 33MHz PCI-X (5V) slots
IDE : • Dual EIDE channels support up to four UDMA IDE devices • Supports UDMA Mode 5, PIO Mode 4, and ATA/100
USB : Up to 6 USB ports
Serial Ports : 2 Fast UART 16550 serial ports
Parallel Port : 1 ECP / EEP parallel port
Floppy : 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support
Keyboard / Mouse : PS/2 keyboard and mouse ports
SOLD OUT
