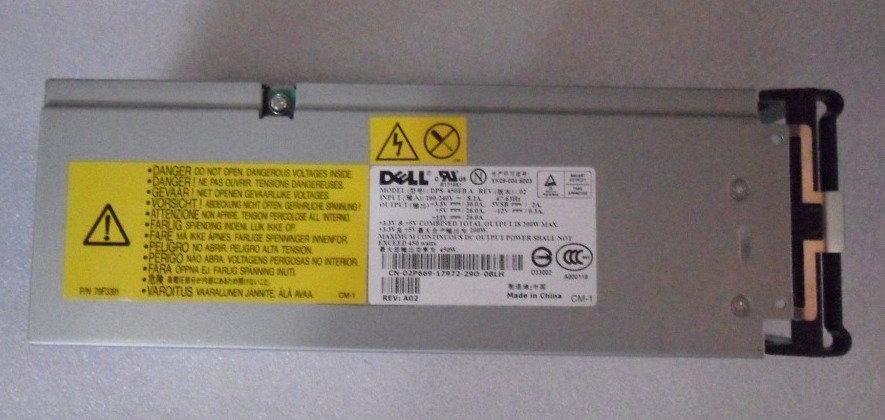

DPS-450FB A 450 Watt Redundant Powersupply for PowerEdge 1600SC (New, 90 day warranty)

Dell DPS-450FB A 450 Watt Redundant Powersupply for Poweredge 1600SC Description
The Poweredge 1600SC initial production was back in 2002.
The 1600SC is still a work horse in older OS environments.
this power supply is known by many part numbers Compatible part numbers are found below the Bar Code starting with CN-0... 2P669, N4531...
The Dell PowerEdge 1600SC is a server still in wide use and worth keeping a little longer.
The Dell PowerEdge 1600SC has 2 options for it's Power Supply Unit(s), 2 Dual Redundant 450 watt Power Supply Units (such as this model and it's compatible part numbers), or 1 single 650 watt PSU, (listed elsewhere our site).
For those of you who are having a hard time figuring out how to remove the Redundant PSU(s) - Lift up on the bottom middle black plastic bracket on the back, (non fan side), of the unit.


Note:If your system is experiencing a complete power failure, there is possible that the power distribution unit is the problem. here Dell PowerEdge 1600SC Power Distribution Unit .

Dell PowerEdge 1600SC 450watt Redundant Power Supply Specification:


Part Number(s): 2P669, N4531, DPS-450FB A
Input100-240v /8.2A,47.63Hz
Output:3.3V/30A, 5.5V/26A, 12V/26A, 5VSB/2A,-12V/.3A
Type:Redundant Power Supply
Condition:New-Stock is good, next day service is no problem
