LSI SAS3801X 8port 3Gb/s SAS PCI-X LSI00124 (Refurbished, 90 day warranty)

$345.00
8port 3Gb/s SAS PCI-X Controller



LSISAS3801X 8port 3Gb/s SAS PCI-X (Refurbished, 30 Day Warranty)
Description:

LSI SAS3801X 8port 3Gb/s SAS PCI-X (Refurbished, 30 Day Warranty)
The LSI SAS3801X card enables large-scale direct attach storage (DAS) arrays through eight external 3Gb/s ports, driving up to 122 SAS and SATA devices. This SAS/SATA host bus adapter supports large capacity external server storage RAID and non-RAID enclosures by connecting a 64-bit PCI-X, 133 MHz bus with two external x4 SFF8088 miniSAS connectors. The low-profile LSI SAS3801X is perfect for 1U/2U servers and drives up to 4800 MB/s full-duplex externally.

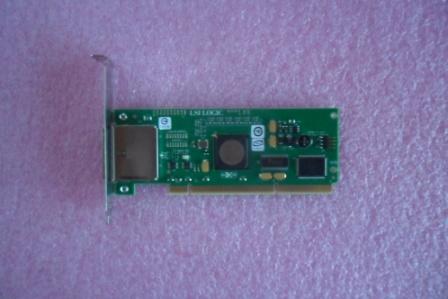

LSI SAS3801X 8 port PCI-X Controller Card


LSI SAS3801X Specification:
•low-profile bracket
•3Gb/s per port
•(2) x4 external SFF-8088 mini-SAS connectors
•MD-2 small form-factor design
•Connects to both SAS and SATA HDDs and tape drives
•Allows more than 122 total end-point devices
•Fusion-MPT architecture provides more than 140,000 I/Os per second
Refurbished, 30 day warranty
STOCK: 2 units 05-27-2015
